Important Info: This Knox product is specifically keyed for the Chandler Fire Department in Arizona. The install location must be covered by this jurisdiction or the product won't be effective or serviceable.

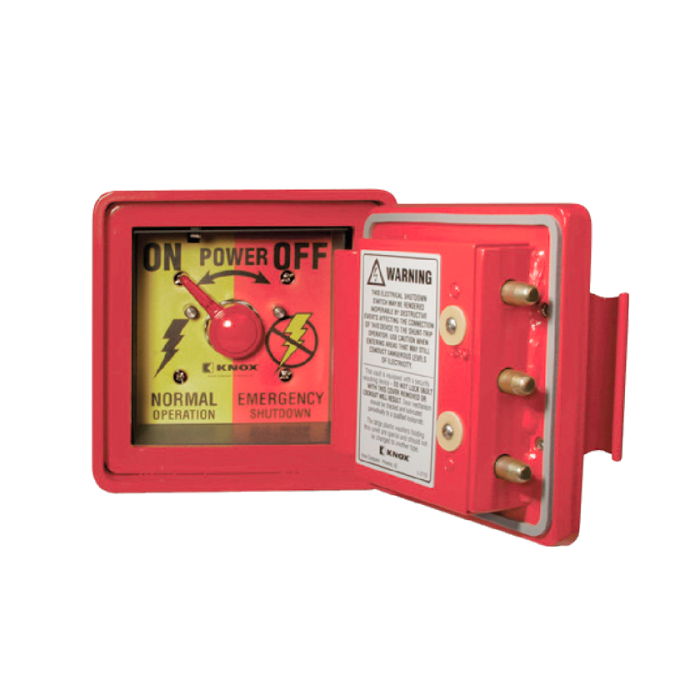

The Knox Remote Power Box enables emergency responders to rapidly power down a building before entering. Designed to remotely operate the building's shunt switch, the Knox Remote Power Box supports electrical power disconnect for not only buildings, but also equipment and systems such as generators, power distribution, wind, solar power and telecommunications systems.
Features
Wires into a shunt trip breaker to remotely disconnect power
Allen-Bradley Type 4/13 Watertight Selector Switch, Double Pole/Double Throw (DPDT)
NEMA 2, 3R electrical enclosure (indoor/outdoor use)
Built Knox-Rugged and secure: UL 1037, 437, 1610, 1332, 508
Finished with Knox-Coat to protect four times better than standard powder coat
Weather-resistant silicone door gasket
Supports lockout/tagout when used with optional tamper seals
Benefits
A fast and safe method for fire personnel to remotely disconnect power from buildings or equipment
Isolates power functions to ensure safe response measures
Secure, UL listed design, protects against tampering or physical attack from unauthorized individuals
Options
Knox Tamper Alert connects to building's alarm system for extra security
Two mounting options: Recessed and Surface
Single or dual lock for shared access (where available)
Exterior Dimensions
Surface Mount Body: 7"H x 7"W x 7-1/4"D
Recessed Mount Flange: 9-1/2"H x 9-1/2"W
Construction
Constructed of 1/4" plate steel housing, 5/8" thick steel door with silicone interior gasket seal.
Lock has 1/8" dust cover with tamper seal mounting capability.
Vault has anti-theft relocking mechanism with drill resistant hardplate lock protector.
Mechanics
Lock is UL 437 listed.
Double-action rotating tumblers and hardened steel pins accessible via a biased cut key.
Finish
Knox-Coat proprietary finishing process
Color Options: Red Part Number (P/N): Knox Remote Power Box (manufacturer's catalog ID) Manufacturer: KNOX COMPANY
